If you're tuning a planted tank and trying to decide between an inline diffuser vs in tank setup, you're already asking the right question. CO2 delivery changes more than just plant growth - it affects the look of the aquascape, how much equipment shows inside the display, and how easy your system is to fine-tune over time.
This is one of those choices that seems simple until you actually start building around it. A clean rimless aquascape with visible hardscape and carefully placed plants benefits from hidden equipment. On the other hand, a dependable in-tank diffuser can be easier to install, easier to monitor, and perfectly effective in the right setup. The best answer depends on your tank size, filter type, layout goals, and how hands-on you want to be.

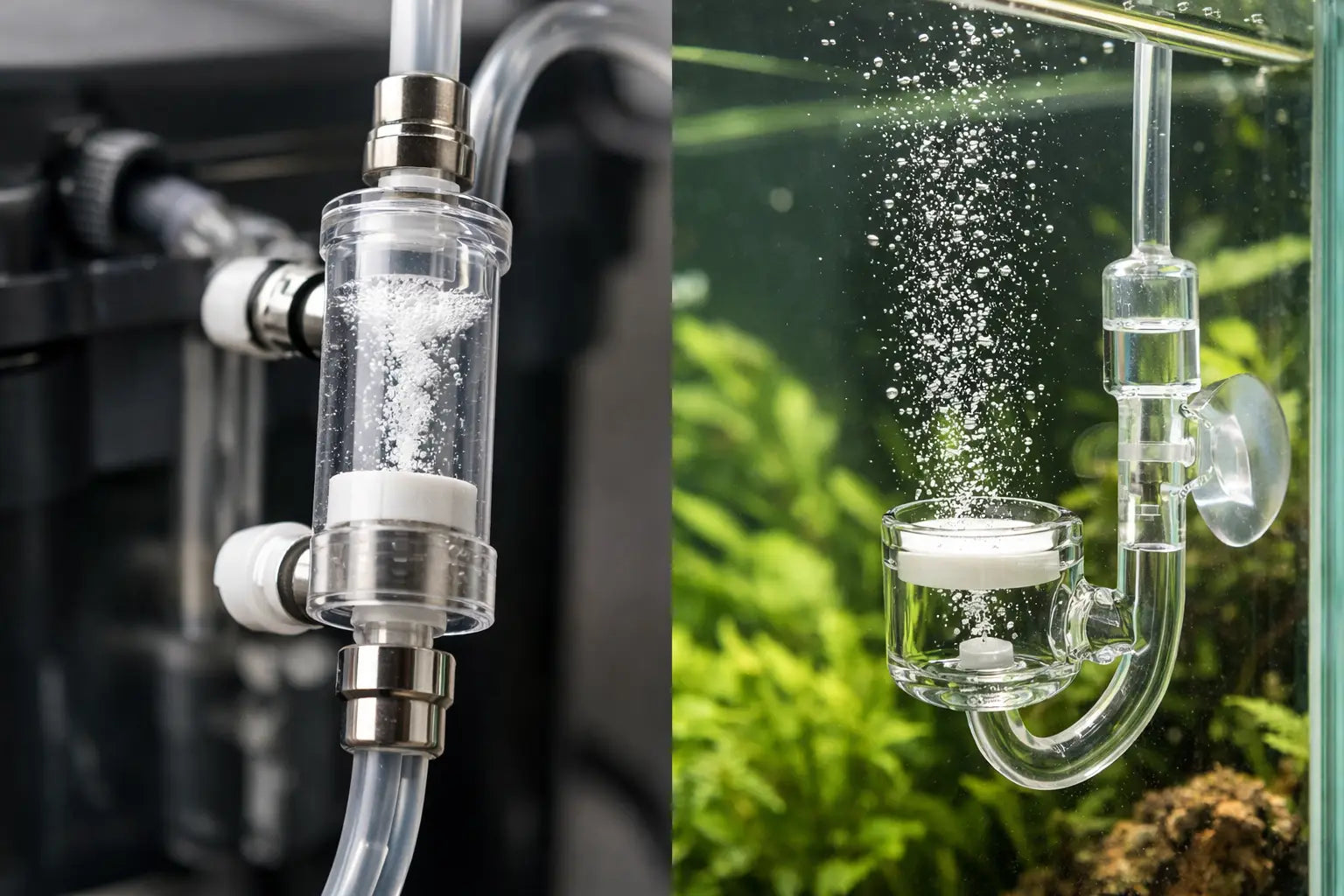

Inline diffuser vs in tank: the real difference
Both options do the same job at the basic level. They break CO2 into fine bubbles so the gas can dissolve into the water and become available to plants. The difference is where that diffusion happens.
An in-tank diffuser sits inside the aquarium, usually attached to the glass with a suction cup. CO2 enters the diffuser, passes through a ceramic disk, and comes out as a mist of very fine bubbles in the display itself.
An inline diffuser installs on the outflow tubing of a canister filter. Instead of diffusing CO2 inside the aquarium, it does the job in the return line before the water re-enters the tank. That means less visible equipment in the aquascape and often a cleaner overall presentation.
For planted tank keepers who care as much about composition as they do about growth, that difference matters. A beautifully arranged stone layout or driftwood structure loses some impact when a large glass diffuser is sitting front and center.
Why many aquascapers prefer inline diffusers
The biggest appeal of an inline diffuser is visual cleanliness. If your goal is a polished planted display, removing one more piece of hardware from the tank makes a noticeable difference. You still get CO2 distribution, but the equipment is tucked away in the cabinet or behind the aquarium where it does not compete with the scape.
Inline units can also work very efficiently when paired with a quality canister filter and strong circulation. Because the CO2 enters the water stream under pressure, the bubbles often stay suspended longer and travel across the tank through the filter return. In many systems, that leads to broad distribution and fewer dead spots.
There is also less clutter to work around during maintenance. Plant trimming, scraping glass, and adjusting hardscape is easier when there is no diffuser mounted inside the display. For high-end planted tanks, especially rimless builds where every visible detail counts, that cleaner presentation is often enough reason to choose inline.
That said, inline is not automatically better. It depends heavily on the rest of the system. If your canister filter flow is underpowered, or your tubing setup is awkward, an inline diffuser may not perform as well as you expect.
When an in-tank diffuser makes more sense
An in-tank diffuser is still an excellent option, and for many hobbyists it is the more practical one. Installation is straightforward. You place it in the tank, connect the CO2 tubing, and start dialing in your bubble rate. There is no need to cut filter hose or match the diffuser to tubing diameter.
It is also easier to see what is happening. You can watch bubble production directly, check whether the ceramic disk is performing well, and move the diffuser if circulation changes. That visibility helps newer hobbyists learn how their CO2 system behaves.
In smaller aquariums, especially nano planted tanks, an in-tank diffuser is often the simplest and most sensible choice. Many nano setups do not run large canister filters, and some use hang-on-back filters or compact internal filtration where inline installation is not even possible. In those cases, an in-tank diffuser is not a compromise - it is the right tool.
There is also a cost factor. In-tank diffusers are usually less expensive and easier to replace. If you are building your first pressurized CO2 system and want dependable performance without added complexity, in-tank can be a smart place to start.
Efficiency, distribution, and plant response
This is where the conversation gets more nuanced. Hobbyists often ask which option dissolves more CO2. The honest answer is that both can work very well, but efficiency depends on setup quality more than the category itself.
A good inline diffuser on a properly sized canister filter can provide excellent dissolution and wide distribution. A good in-tank diffuser placed near filter flow can do the same. Poor circulation will hurt either one.
What plants care about is consistency. They respond best when CO2 reaches stable levels before the photoperiod and stays reasonably even throughout the tank. If one side of the aquarium gets good flow and the other side barely moves, carpeting plants and more demanding stems will show the difference quickly.
This is why diffuser placement and overall circulation matter so much. An in-tank diffuser placed under the filter outflow may outperform an inline diffuser on a weak return line. Likewise, an inline diffuser feeding a well-designed canister system may create a more even CO2 pattern than a visible diffuser tucked in a low-flow corner.
If your goal is peak plant performance, do not choose based on hardware style alone. Choose based on how the whole system moves water.
Maintenance and troubleshooting
Inline diffusers tend to keep the display cleaner, but they can be slightly less convenient when something goes wrong. If the ceramic membrane starts clogging or performance drops, you have to disconnect the unit from the filter line for service. Depending on your cabinet space and hose routing, that can be mildly annoying or genuinely frustrating.
In-tank diffusers are easier to access. You can remove them, clean the ceramic disk, and reinstall them without touching your filter plumbing. That simplicity matters if you prefer equipment that is easy to monitor and maintain.
There is also the issue of leaks. Any time you add another component to pressurized tubing or canister lines, you create another possible failure point. A quality inline diffuser installed correctly is reliable, but a rushed install can lead to drips, pressure issues, or awkward hose runs.
An in-tank diffuser avoids most of that. The trade-off is that it adds visible hardware inside the aquarium and usually requires more thoughtful placement to avoid distracting from the aquascape.
Which tanks are best for each option?
For medium to large planted tanks with canister filters, inline diffusers are often the premium choice. They suit display-focused aquascapes where clean sightlines matter and hidden equipment helps the layout stand out. If you are building around carefully selected stone, branch wood, and structured plant groups, removing visible gear from the glass makes the final result look more intentional.
For small tanks, beginner CO2 systems, or aquariums without canister filtration, in-tank diffusers are usually the better fit. They are simpler, more flexible, and easier to troubleshoot. They also work well when the aquascape can hide the diffuser behind taller plants or hardscape.
There is also a middle ground. Some experienced hobbyists start with in-tank to learn CO2 behavior, then switch to inline when they upgrade to a larger canister-based build. That progression makes sense because it aligns with how planted tanks often evolve - from functional setup first to highly refined display later.
How to choose without overthinking it
If your priority is a clean, gallery-style planted tank and you already run a canister filter, inline is usually worth serious consideration. It supports the look most aquascapers want and can perform extremely well when matched with proper flow.
If your priority is simplicity, lower cost, and easy setup, in-tank is still a strong choice. It is not a budget-only solution or a lesser option. In many tanks, it is the most practical and effective answer.
A helpful way to frame the decision is this: are you optimizing first for aesthetics, or first for convenience? Most of the time, that reveals the better direction.
For hobbyists building a polished planted display, this is the kind of equipment choice that shapes the final look more than expected. Aqua Rocks Colorado works with aquascapers who care about that difference, because premium planted tanks are never just about growing plants - they are about creating a finished underwater composition where every visible element earns its place.
Choose the CO2 method that fits the tank you are actually building, not the one that sounds best on paper. The best system is the one you can tune confidently, maintain without dread, and trust to keep your plants thriving while your aquascape stays exactly as clean as you imagined.
