A planted tank can have premium stone, carefully chosen driftwood, and a strong layout, yet still fall short when carbon delivery is inconsistent. Learning how to set up co2 diffuser equipment correctly is what turns a pressurized CO2 system from a collection of parts into reliable fuel for healthy, vibrant plant growth.

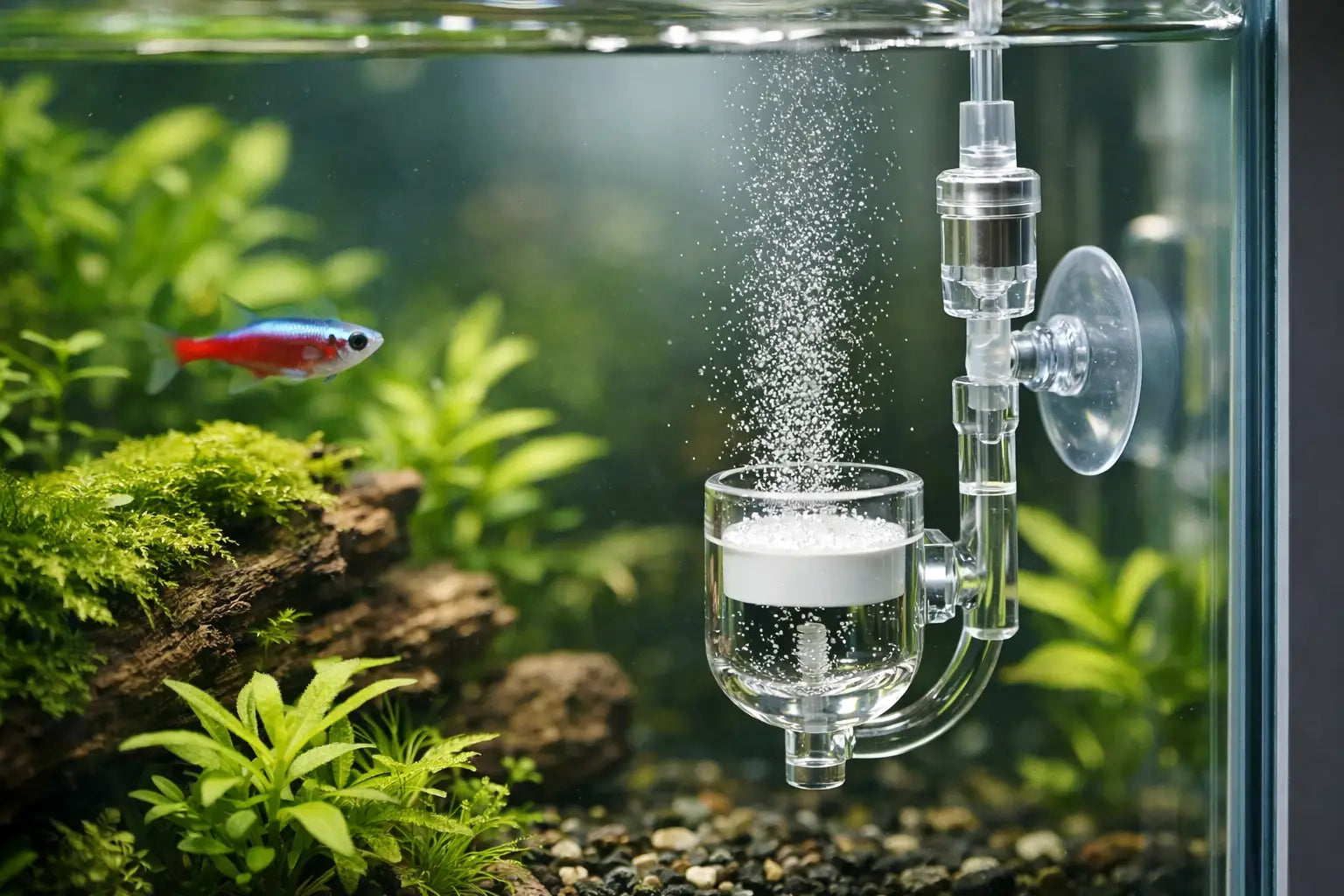

A diffuser is simple in principle: it breaks pressurized CO2 into tiny bubbles so the gas can dissolve into aquarium water. The details matter, though. Tubing direction, diffuser placement, circulation, timing, and adjustment all affect how much CO2 reaches your plants and how safely your fish and shrimp respond.
Gather the right CO2 components first
For a standard in-tank ceramic diffuser, you need a CO2 cylinder, a quality regulator with a working pressure gauge and needle valve, CO2-safe tubing, a bubble counter, a check valve, a solenoid if you want automated timing, and the diffuser itself. A drop checker is also useful for monitoring trends, but it should not replace close observation of livestock.
Use tubing made specifically for CO2. Standard soft airline tubing can become loose, leak gas, or harden over time. CO2-resistant tubing creates a tighter fit and makes the system easier to tune. If the tubing is difficult to push onto a fitting, briefly warm the end in hot water rather than forcing it.
Choose a diffuser sized for the aquarium. A small nano diffuser may look clean in a 10-gallon aquascape but will struggle to supply a heavily planted 40-gallon tank. Oversizing is usually less troublesome than undersizing, provided your regulator has precise needle-valve control. For larger aquariums, an inline atomizer can be a better fit, especially when you want to keep equipment out of a refined rimless display.
How to set up a CO2 diffuser step by step
Start with the CO2 cylinder standing upright in a secure location. A falling cylinder can damage the regulator or valve, so do not balance it loosely in a cabinet. Make sure the cylinder valve is closed before attaching the regulator. Thread the regulator onto the cylinder connection securely according to its fitting style, but do not over-tighten it.
Attach the tubing to the regulator outlet, then run it through the bubble counter if your regulator does not have one built in. Next, install the check valve between the bubble counter and the aquarium. The arrow on the check valve must point toward the tank. Its job is to stop aquarium water from traveling backward into your regulator if pressure drops or the system turns off.
Connect the remaining tubing to the diffuser. Before placing it in the aquarium, soak a new ceramic diffuser in water. Many ceramic discs produce finer, more even bubbles after a few hours of soaking, while some benefit from an overnight soak. Follow the manufacturer’s instructions if they specify a longer break-in period.
With the diffuser submerged, open the cylinder valve slowly and fully. Then set the regulator’s working pressure to the range recommended for your diffuser. Many systems run well around 20 to 30 PSI, but the correct pressure depends on the equipment. Open the needle valve gradually until you see bubbles enter the bubble counter and, after a short delay, emerge from the diffuser.
Do not expect a brand-new diffuser to perform perfectly the first minute. It may release larger bubbles until the ceramic is saturated and the internal pressure stabilizes. Give it time before making repeated adjustments.
Place the diffuser where CO2 can travel
The best diffuser location is usually low in the aquarium, near the filter outlet or in the path of established circulation. This gives the microbubbles time to move through the water column instead of rising straight to the surface and escaping.
In many layouts, placing the diffuser on the side panel opposite the filter intake works well. The filter outlet pushes CO2-rich water across the aquascape, while the intake pulls it through the tank. This is especially useful in dense planted tanks where stems, wood, and large hardscape can create low-flow pockets.
Avoid burying the diffuser in substrate or tucking it behind hardscape where it cannot be cleaned. It needs accessible flow and occasional maintenance. Also avoid placing it directly under a strong surface agitation point. Heavy splashing and surface disturbance drive dissolved CO2 out of the water before plants can use it.
A gentle surface ripple is still desirable for oxygen exchange, particularly at night. The goal is balance: enough movement to prevent stagnant zones, not so much turbulence that you waste CO2.
Set a safe starting bubble rate
Bubble rate is only a starting point, not a universal measurement. One bubble per second in a 20-gallon aquarium may be excessive with one regulator and insufficient with another because bubble size, diffuser efficiency, water movement, plant mass, and tank volume all differ.
Begin conservatively. For a planted aquarium around 20 to 30 gallons, one bubble per second is a reasonable initial test rate. For a smaller tank, start lower. For a large, heavily planted aquarium, you may need more, but increase slowly rather than making a large jump.
Let each adjustment run for at least a full day before deciding whether it helped. Plants respond to consistent conditions, and livestock needs time to show you whether the concentration is comfortable. Raise the rate in small increments until plant growth and pearling improve without fish gathering at the surface, breathing rapidly, or acting unusually still.
Shrimp can be particularly useful indicators of stability. Healthy shrimp should continue grazing and moving normally. If shrimp climb toward the waterline or fish are clearly gasping, turn off CO2 immediately, increase surface agitation, and perform a partial water change if needed.
Match CO2 timing to your lighting
Plants use CO2 when lights are on, but the aquarium should reach an effective concentration before the photoperiod begins. Set the solenoid to turn CO2 on about one to two hours before the lights come on. Turn it off about one hour before the lights go out.
The exact schedule depends on circulation and plant demand. If a drop checker remains too blue when the lights begin, or plants only pearl late in the day, start CO2 earlier rather than simply increasing bubble rate. If fish show stress before lights come on, you may be starting too early or dosing too aggressively overnight.
A timer-controlled solenoid makes this routine far more consistent than manually opening and closing the cylinder valve. It also conserves gas and reduces the chance of forgetting a daily adjustment.
Check for leaks before you tune the tank
A slow gas leak can empty a cylinder surprisingly fast and make bubble-rate adjustments feel unpredictable. After connecting the system, apply a small amount of soapy water to external threaded connections and tubing joints while the system is pressurized. Growing soap bubbles indicate a leak.
Never use a flame to test for leaks. If you find one, close the cylinder valve, release pressure from the regulator, reconnect the fitting, and test again. Inspect tubing periodically as well, especially around cabinet hinges or sharp edges that can pinch it.
Keep the bubble counter filled with water or the manufacturer’s recommended fluid. If it runs dry, you can no longer accurately see the delivery rate, and some styles may allow water movement where it does not belong.
Read the aquarium, not just the equipment
A drop checker with proper 4 dKH solution can provide a helpful visual reference. Green during the photoperiod often suggests a useful working range, while blue may indicate low CO2 and yellow can signal too much. Still, treat it as a delayed indicator rather than an instant reading.
pH tracking can add another layer of information. Many planted-tank keepers use a roughly one-point pH drop from fully degassed water as a starting reference for higher CO2 levels. That approach becomes less reliable when substrates, botanicals, or other acids affect pH, so never use a number alone to override livestock behavior.
Make one change at a time. If algae appears, resist the urge to increase light, fertilizer, and CO2 all at once. First confirm that CO2 is stable from the start of the photoperiod through the end, that circulation reaches every section of the layout, and that maintenance is consistent.
Keep the diffuser clean for fine bubbles
Over time, algae and mineral deposits clog ceramic pores, making bubbles larger and reducing efficiency. When the diffuser begins producing uneven streams or requires more pressure than usual, remove it for cleaning. Soaking only the ceramic portion in a diluted unscented bleach solution can restore it, followed by a thorough rinse and a soak in water treated with dechlorinator.
Never return a diffuser to the tank until there is no bleach odor remaining. Keeping a second diffuser on hand is useful for high-demand aquascapes, since it lets you clean one without interrupting CO2 delivery.
A well-tuned diffuser should disappear into the rhythm of the aquarium: fine bubbles carried through the plants, steady growth, and livestock moving naturally through the scape. If you are building a display where every piece of equipment and hardscape choice counts, Aqua Rocks Colorado can help you select components that support both the performance and visual finish of the tank.
