A beautiful planted tank can lose some of its impact when bulky intake and outflow hardware distracts from the layout. That is exactly why so many aquascapers ask how to install aquarium lily pipes correctly. Done well, they improve flow, keep equipment visually light, and help the tank look as refined as the hardscape and planting beneath them.
Lily pipes are simple in concept, but small setup mistakes can cause weak circulation, noisy operation, or a film that lingers at the surface. The good news is that installation is not difficult once you understand what each pipe is supposed to do and how placement affects the whole aquascape.
What lily pipes actually do
The intake pipe pulls water from the aquarium into your canister filter. The outflow pipe returns filtered water back to the tank in a controlled pattern. Compared with standard plastic hardware, glass or acrylic lily pipes are chosen as much for their function as their appearance. They create a cleaner visual line and often produce a gentler, broader flow that suits planted aquariums well.
That said, not every tank benefits from the same setup. A high-energy stem plant layout with CO2 injection may need stronger circulation than a shrimp-focused nano tank. Fish species matter too. Some enjoy current, while others look better and behave more naturally in softer flow.
Before you install aquarium lily pipes
Start by confirming compatibility. Lily pipes are sized to match tubing, commonly 12/16 mm or 16/22 mm. If the tubing size and pipe size do not match exactly, you may end up fighting leaks, loose connections, or restricted flow. Measure first rather than guessing.
You also want to check glass thickness. Many lily pipes are shaped for rimless aquariums or tanks with a specific wall thickness. If the bend is too narrow for your tank, forcing it is a fast way to crack an expensive pipe. If the bend is too wide, the pipe may sit unevenly or wobble.
Before installation, rinse the pipes with clean water. Do not use soap. If they are glass, handle them over a towel or soft surface while you work. Premium aquascaping gear looks elegant, but it still needs careful handling.
What you need for a clean install
You usually do not need much more than the pipes, matching tubing, and suction cups or pipe holders. A towel helps with drips, and a bucket is useful if you are connecting the system to an established canister filter. If the tubing is stiff, warming it in hot water for a minute makes it easier to slide onto the pipe without excessive force.
If this is a brand-new build, installation is easiest before the tank is filled all the way. If the aquarium is already running, lower the water level a bit so you can work comfortably and reduce the chance of splashing.

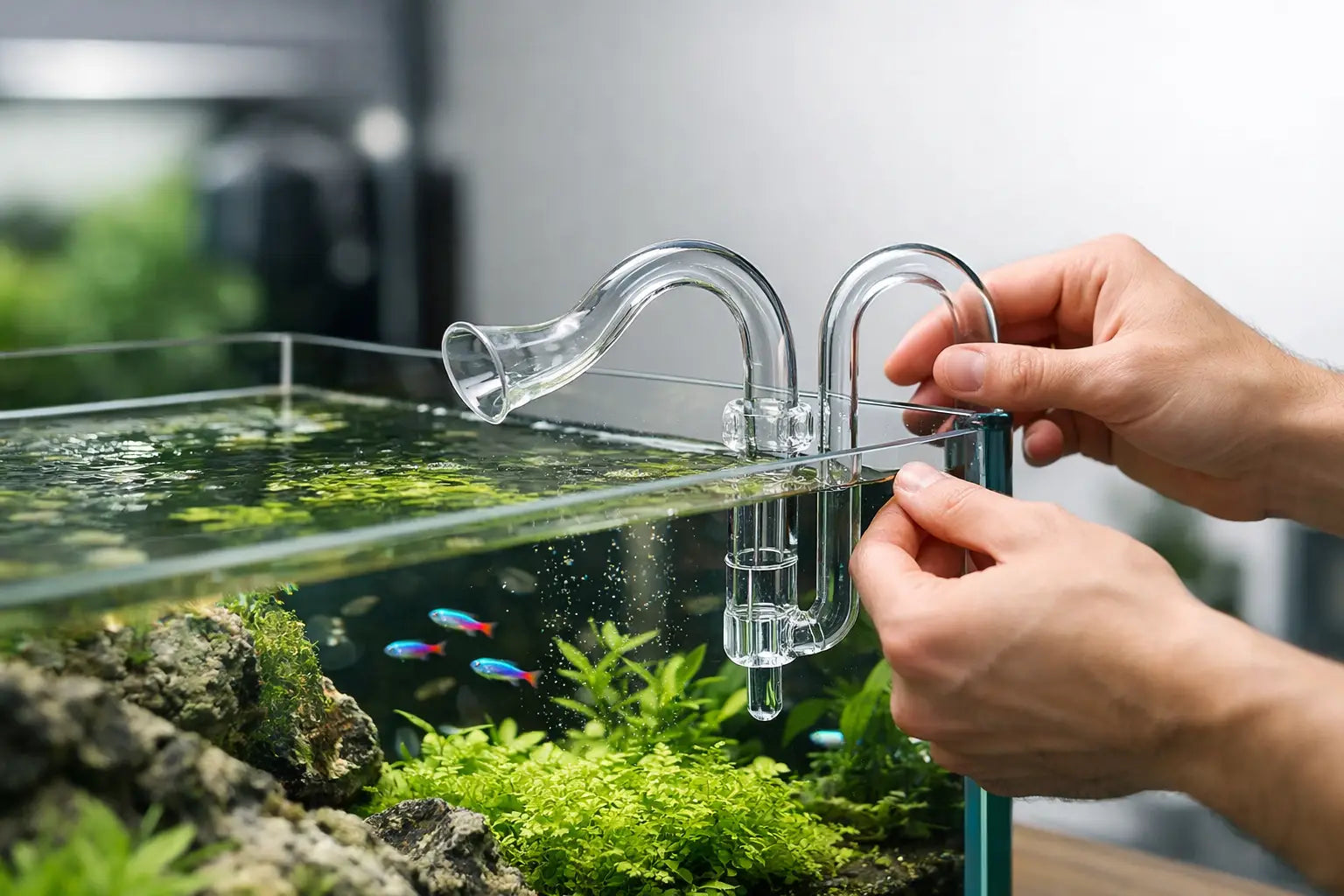

How to install aquarium lily pipes step by step
Begin with the intake side. Place the intake pipe on the back or side panel where it will be least visually intrusive but still able to pull water efficiently. In many aquascapes, the intake and outflow sit on opposite ends of the tank to create full circulation across the layout. That is the most common choice because it reduces dead spots.
Position the intake low enough to draw water from the lower water column, but not so low that it constantly pulls in substrate debris or delicate carpeting plants. A good starting point is a few inches above the substrate. If you keep shrimp, use a prefilter sponge when needed. It is not the prettiest addition, but it protects livestock and keeps larger debris out of the filter.
Next, connect the intake tubing. Push the tubing onto the intake pipe firmly and evenly. Avoid twisting the glass itself. Hold the tubing and support the base of the pipe with your other hand. Once connected, secure the pipe with the provided holders so it sits straight and does not shift.
Move to the outflow pipe. This is the piece that most directly affects visible circulation and surface movement. Mount it near the surface, with the opening just below the waterline in most setups. That placement usually creates the classic gentle ripple that promotes gas exchange without turning the display into a wash cycle.
Attach the return tubing the same way - carefully, evenly, and without putting side pressure on the pipe. Make sure the tubing path to and from the canister is smooth. Sharp bends can reduce flow and make priming harder.
Once both pipes are mounted, fill the filter and prime the system according to the filter manufacturer’s instructions. As water begins moving, watch every connection closely. You are checking for drips, but you are also checking for behavior inside the tank. The first few minutes tell you a lot.
Dialing in outflow placement
This is the part that separates a basic install from a polished one. The outflow pipe should not be treated as fixed forever. Small adjustments in height and angle can dramatically change circulation.
If the outflow sits too high, it may create splashing or pull in air, especially as evaporation lowers the water level. If it sits too low, you may get almost no surface agitation, which can leave a surface film in place and reduce oxygen exchange. For many planted tanks, the sweet spot is just under the surface with a gentle ripple rather than obvious turbulence.
Angle matters too. Pointing flow straight across the length of the tank often works well for standard rectangular aquariums. In tanks with dense hardscape or large wood branches, angling the outflow slightly can help move water behind features where debris and CO2-poor water might otherwise collect.
Common mistakes and how to avoid them
One of the biggest mistakes is choosing lily pipes for looks alone without considering flow needs. A beautiful pipe cannot compensate for an undersized filter or poor circulation pattern. If the tank is large, heavily planted, or densely stocked, the whole filtration setup needs to be sized accordingly.
Another common issue is placing the intake and outflow too close together. When that happens, filtered water can loop in a small area instead of circulating through the whole aquarium. The tank may look fine at first, but debris settles in corners and plants in low-flow zones can struggle.
Surface skimming is another point of confusion. Some lily pipes are designed specifically to address surface film, while standard outflow pipes rely on proper positioning for surface movement. If you regularly battle oily buildup from food, plant oils, or room dust, a dedicated skimmer or skimmer-style intake may be worth considering.
Finally, do not ignore maintenance. Even premium glass lily pipes lose their visual appeal when algae coats the inside. Flow also drops as buildup increases.
Maintenance after installation
Once you install aquarium lily pipes, plan on regular cleaning. In high-light planted tanks, clear pipes can show algae fast. That does not mean anything is wrong - it just means the gear is doing its job in a nutrient-rich environment.
A pipe brush sized for the tubing curve usually makes cleaning straightforward. Remove the pipes carefully, rinse them, and brush out buildup without scraping aggressively. If you are cleaning glass, patience matters more than force. Reinstall them the same way you did the first time, checking alignment and water level afterward.
If you notice reduced flow between maintenance intervals, check the intake strainer, tubing, and canister filter as a system. Lily pipes are only one piece of the circulation chain.
When lily pipes are worth it
For a design-driven planted tank, lily pipes are often one of those upgrades that changes the entire presentation. They reduce visual clutter and support the open, intentional look that makes a rimless aquarium feel finished. For many aquascapers, that alone justifies the switch.
But there are trade-offs. Glass looks premium and disappears beautifully in the water, yet it is more fragile and needs careful cleaning. Acrylic options are more forgiving, though they usually do not vanish into the aquascape quite the same way. If your tank is in a busy household or you move equipment often, that difference matters.
For hobbyists building a refined planted display, carefully chosen hardware makes as much difference as stone, wood, or plant selection. That is part of why specialized shops like Aqua Rocks Colorado focus on curated equipment that supports both performance and presentation.
A good lily pipe install should fade into the background once it is set up. You should notice healthier circulation, a cleaner surface, and a stronger overall look - not the hardware itself. If you take the extra few minutes to adjust placement instead of stopping at simply attached and running, your aquascape will show the difference.
