A great custom aquarium build example is not just a beautiful tank on installation day. It is a layout where the rock scale fits the glass, the driftwood creates movement without clutter, the equipment can support the plant load, and the livestock has room to thrive. The best builds look intentional from every viewing angle because every choice started with a clear visual goal.

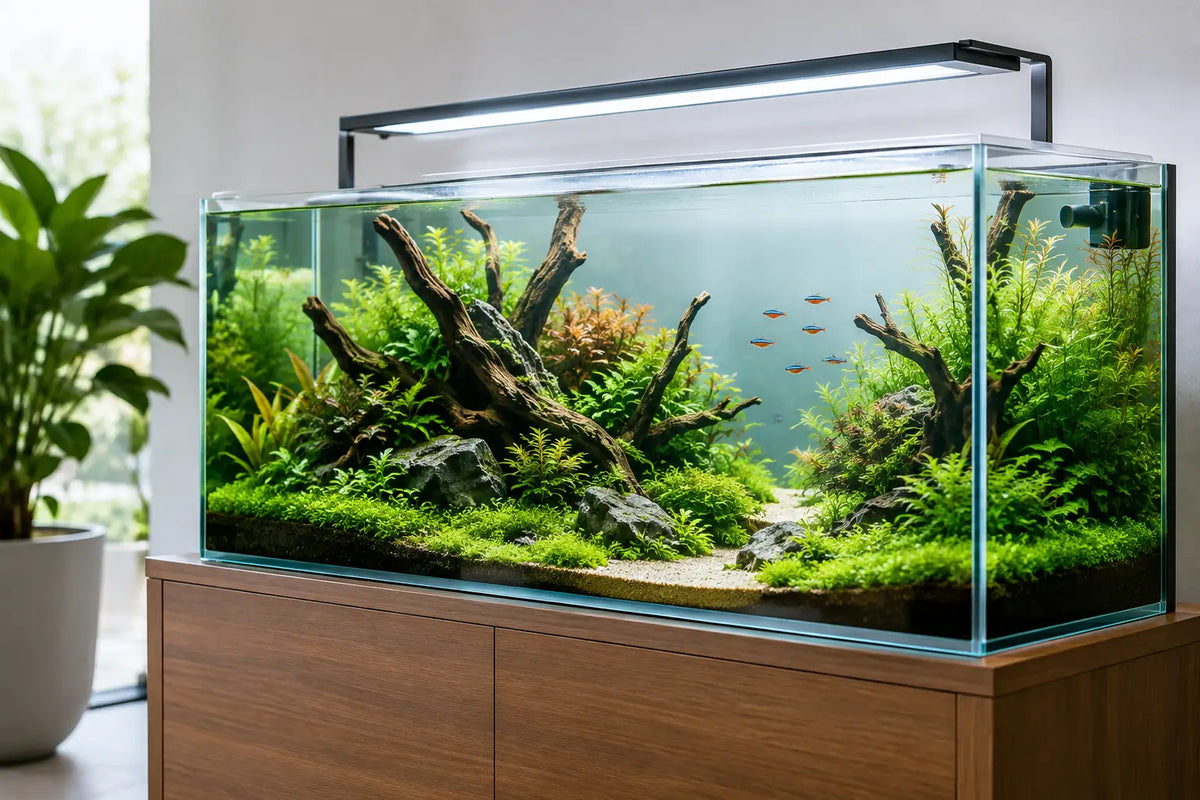

For this example, picture a 48 x 18 x 20-inch rimless planted aquarium, roughly 75 gallons, designed as a nature-inspired riverbank. It is large enough to make an impact in a living room or office, yet shallow enough for practical planting and maintenance. The goal is a dense, layered composition: dramatic stone on one side, branching wood carrying the eye across the tank, and a planted transition into an open sand foreground.
A Custom Aquarium Build Example: The Design Brief
The first decision is not the rock. It is the feeling the aquarium should create. This build uses a strong left-to-right flow, with the highest point on the left third of the aquarium. The left side feels weathered and elevated, while the right side opens into a calm, low sandbed. That contrast gives the fish visible swimming space and keeps the layout from becoming a wall of plants and hardscape.
A 75-gallon format is a smart choice for this style because it gives hardscape room to breathe. Smaller tanks can absolutely be striking, but large stone and branching wood can quickly overwhelm shallow dimensions. In a larger custom rimless aquarium, the materials can be scaled up without making maintenance difficult or sacrificing negative space.
The layout is viewed primarily from the front, but it should still have depth from a side angle. The main stone group sits several inches forward of the back glass, leaving room for background plants and water circulation. Wood extends toward the center without touching the front pane, so the aquascape feels immersive rather than boxed in.
Choosing a palette that works together
For a premium riverbank layout, start with one primary rock type rather than mixing several unrelated textures. Dark, angular stone creates a more dramatic contrast with bright carpeting plants, while warmer brown or gray stone can produce a softer, more natural result. The choice depends on the room, the lighting, and the plant palette.
This example uses a single family of textured gray stones, selected with matching color, grain, and weathering. One large anchor stone establishes the composition. Several medium stones repeat its angles and texture, while smaller accent stones connect the group to the substrate. Those smaller pieces matter. Without them, a large rock formation can look placed instead of naturally settled.
The wood should support the stone rather than compete with it. Fine branching driftwood works especially well here because it carries the eye from the high stone group toward the open right side. A few branches can be secured behind or between rocks so their origin point is hidden. The result feels like roots emerging from an eroded bank.
When selecting hardscape online, exact piece selection makes a real difference. A photo may show a beautiful stone, but scale, shape, and face direction determine whether it works in your specific composition. Aqua Rocks Colorado’s hand-pick process and approval photos are especially useful for builders who need a centerpiece with a particular height, silhouette, or texture.
Building the Base Before Placing Hardscape
A planted aquarium needs more than an attractive surface layer. The base has to support root feeders, create elevation, and remain stable after months of maintenance. Begin with a nutrient-rich planted substrate in the areas reserved for rooted plants. Use inert sand only where you want the clean open riverbed effect.
For this layout, build the substrate higher behind the stone group and lower toward the front glass. The slope should be more gradual than most first-time builders expect. A steep hill often settles over time, especially if it is unsupported. Using mesh bags of inert media, lava rock, or purpose-built dividers beneath the substrate can save soil while reinforcing the raised areas.
Place the largest anchor stone first. Turn it until its most interesting face is visible from the primary viewing position, then press it firmly into the substrate. The stone should look partially buried, not balanced on top of the soil. Add the supporting stones with their grain and angles moving in the same general direction. Repetition creates visual harmony.
Only after the rock group feels complete should you introduce the wood. Test it dry in the aquarium, then step back several feet. A branch that looks elegant up close may block the central sightline when viewed from across the room. Trim or reposition wood before filling the tank, not after plants and livestock are established.
Planting for Depth, Texture, and Long-Term Care
The plant plan should reinforce the hardscape hierarchy. In this custom aquarium build, low carpeting plants soften the foreground, while compact midground plants visually connect the rocks to taller background stems. The tallest plants stay behind the hardscape mass, framing the composition without turning it into a green curtain.
A fine carpet such as dwarf hairgrass or a small-leaf carpeting plant can fill the front and wrap lightly around the base of the stones. Avoid planting every exposed inch of substrate. Leave a clear sand channel on the right side and maintain a few open pockets around the rockwork. Bare space is part of the design.
Use epiphyte plants sparingly on the wood and shaded rock faces. Small Anubias, Bucephalandra, or moss can add age and detail without requiring deep substrate. Attach them with aquarium-safe gel or thread, keeping the rhizomes exposed. Burying a rhizome is a common mistake and can lead to rot.
For the background, choose two or three species with compatible growth rates and colors. A mix of green stem plants with a limited amount of reddish accent color creates depth without making the aquarium visually noisy. If the aquarium will receive high light and injected CO2, fast-growing stems can be used to establish a lush look quickly. For a lower-maintenance setup, select slower-growing plants and accept a more open, deliberate style.
Equipment That Matches the Ambition of the Layout
A high-end aquascape needs consistent equipment, not necessarily the most complicated equipment. For a 75-gallon planted aquarium, use a filter sized for strong biological capacity and steady circulation. Position the intake near the dense hardscape side, where debris tends to collect, and aim the return so water moves across the length of the aquarium without blasting the plants.
Lighting should be selected for the tank’s dimensions and plant demands. High-output planted lighting can bring out color and drive compact growth, but it also raises the risk of algae when fertilization, CO2, and maintenance are inconsistent. Start with a shorter photoperiod, usually around six hours, and increase only after the aquarium is stable.
Injected CO2 is the right fit for the dense carpet-and-stem planting shown in this example. Run it on a timer so it begins before the light period and remains stable every day. The exact bubble rate depends on water movement, plant mass, and surface agitation, so watch livestock behavior and use a drop checker or other reliable monitoring method. CO2 should improve plant growth, never compromise fish or shrimp.
A heater, thermometer, and basic testing tools belong in the plan even when they are not the visual stars of the build. A custom aquarium succeeds through repeatable conditions: stable temperature, adequate filtration, controlled light, and appropriate nutrient dosing.
The First Month Is Where the Build Becomes Real
Fresh aquascapes are not finished aquascapes. During the first few weeks, plants adjust, wood may release tannins, and the biological filter develops. Some melting in tissue-cultured or newly transitioned plants can be normal. The response is not to make daily changes to every variable. Keep the routine steady, remove deteriorating leaves, and make modest adjustments based on what the aquarium is showing you.
For the first month, frequent water changes help manage excess organics and give the aquarium a clean start. Trim fast-growing stems before they shade slower plants. Clean the glass early rather than allowing algae to establish. Add fish gradually after the system is cycled and the planting has begun to root.
A school of midwater fish can emphasize the open channel in this layout, while shrimp or small bottom dwellers bring movement to the foreground. Stocking should serve the aquarium’s biology first and its visual effect second. The most compelling aquascapes feel alive, but they never look crowded.
Leave yourself room to edit. A branch may need trimming, a background stem group may need to move, or the sand channel may need to be widened after the plants fill in. That ongoing refinement is part of the craft. Build the framework with carefully selected materials, then let patience turn it into an aquarium worth looking at every day.
